品牌:ALPSALPINE(阿尔卑斯阿尔派)
尺寸:6.0*3.5mm
安装方式:插件
按键寿命:3万次,5万次
按键行程:0.25mm
应用领域:汽车电子、工业设备、白色家电、电子产品等。
立式插件型
产品编号 | 型 | 动作力 | 操作方向 | 行程 | 操作寿命 | 初期接触电阻 | 按钮颜色 | 高度 |
(5mA 12V DC) | ||||||||
SKHLAAA010 | 按入 | 0.98N | Top push | 0.25mm | 50,000 cycles | 500mΩ max. | Black | h=4.3mm |
SKHLACA010 | 按入 | 1.57N | Top push | 0.25mm | 50,000 cycles | 500mΩ max. | Dark gray | h=4.3mm |
SKHLAJA010 | 按入 | 2.55N | Top push | 0.25mm | 30,000 cycles | 500mΩ max. | Red | h=4.3mm |
SKHLABA010 | 按入 | 0.98N | Top push | 0.25mm | 50,000 cycles | 500mΩ max. | Black | h=5mm |
SKHLADA010 | 按入 | 1.57N | Top push | 0.25mm | 50,000 cycles | 500mΩ max. | Dark gray | h=5mm |
SKHLAKA010 | 按入 | 2.55N | Top push | 0.25mm | 30,000 cycles | 500mΩ max. | Red | h=5mm |
侧面插件型
产品编号 | 型 | 动作力 | 操作方向 | 行程 | 操作寿命 | 初期接触电阻 | 按钮颜色 | 端子长度 |
(5mA 5V DC) | ||||||||
SKHLLAA010 | 按入 | 0.98N | Side push | 0.25mm | 50,000 cycles | 500mΩ max. | Black | l=3.5mm |
(PC board t: 1.6) | ||||||||
SKHLLBA010 | 按入 | 1.57N | Side push | 0.25mm | 50,000 cycles | 500mΩ max. | Dark gray | l=3.5mm |
(PC board t: 1.6) | ||||||||
SKHLLFA010 | 按入 | 2.55N | Side push | 0.25mm | 30,000 cycles | 500mΩ max. | Red | l=3.5mm |
(PC board t: 1.6) | ||||||||
SKHLLCA010 | 按入 | 0.98N | Side push | 0.25mm | 50,000 cycles | 500mΩ max. | Black | l=2.5mm |
(PC board t: 1.0) | ||||||||
SKHLLDA010 | 按入 | 1.57N | Side push | 0.25mm | 50,000 cycles | 500mΩ max. | Dark gray | l=2.5mm |
(PC board t: 1.0) |

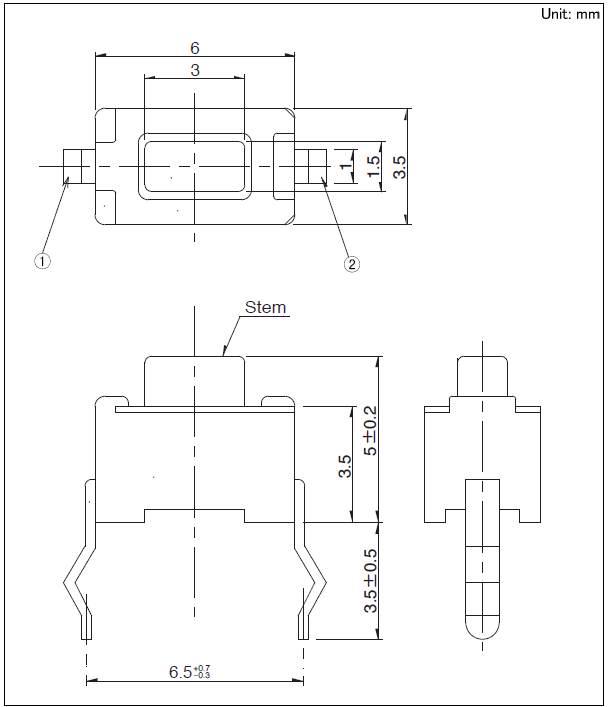

立式插件型尺寸图:

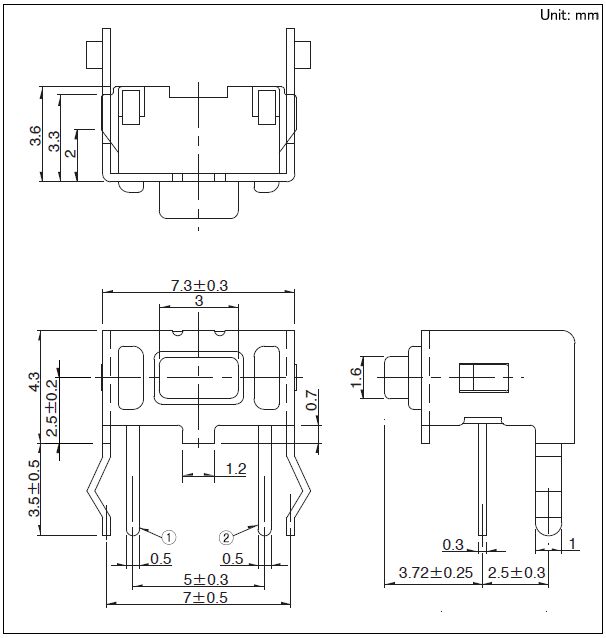

侧面插件型尺寸图:
